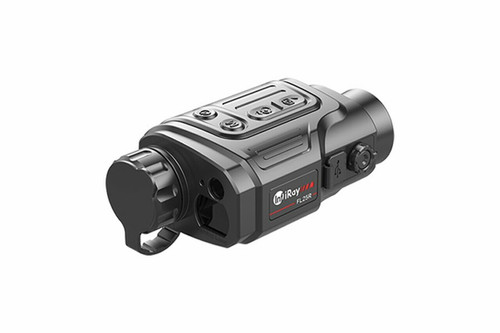

InfiRay - Finder Series FL25R - Thermal Range Finding Monocular
The Finder series products are light and easy to carry, especially suitable for one-handed operation that can be put in a pocket anytime and anywhere. The compact design makes the Finder the best choice for outdoor investigation or hunting as it includes an inbuilt thermal range finder.
Key Features:
- High Image Quality
The advanced image processing ability of the InfiRay detector, which has high performance electronics and optimized infrared optics, creates excellent image clarity and provides better detection and classification, both in day and night.
- 12µm Thermal Imaging Sensor and Long Detection Range 1298 m
High performance 12μm pixel pitch detectors are embedded. Powerful objective lens in combination with a 12µm professional grade thermal imaging sensor provides exceptional detection capabilities. A standard 1,7 m (5.58 ft) tall object can be detected at a 1300 m (1420 yds) distance in complete darkness.
- High Image Frequency 50 Hz
The 50 Hz refresh rate guarantees that you will capture every moment that you are interested in.
- HD Micro Display
1280×960 high-resolution internal display offers sharp image and vivid colours.
- Integrated Laser Rangefinder (LRF) 600m
The Finder series has a built-in laser ranging module, which helps to quickly and accurately capture and display the target distance. The ranging accuracy is ± 1 m and the maximum ranging distance is 600 m. Accurate distance readings help to quickly assess the size of the territory and distance to targets. Integrated, precision laser rangefinder provides accurate rangefinding, it provides both single ranging and continuous ranging modes. Continuous ranging can be quickly activated to adapt to the constantly changing distance of the observed object.
- Pocket Machine
The compact size and light weight makes it easy to carry and operate with one hand. It can be put into the pocket anytime and anywhere. The Finder weighs only 320g which is lighter than conventional rangefinders, but much more powerful.
Compact size of thermal imager makes it an optimal portable unit for scouting and spotting.
- Infrared Sensor Switch
By sensing the reflection, the infrared sensor switch controls the display on and off automatically which saves power and extends the device's operation time. It also has the advantage of high sensitivity, strong anti-interference ability and stable working performance.
- Built-in Video Recorder and WiFi Connection
With built-in storage space, the Finder series supports to save the interesting moments in the form of photos or video for sharing with colleagues, friends and family. It can store many hours of recorded video and tens of thousands of photos.
- App Supported
Built in Wi-Fi module provides connectivity of Finder with Android or iOS smartphones or tablets. The smartphone and thermal imager combination offer a set of unique features such as direct image streaming, downloading and sharing recorded files, firmware.
- Built-in Accelerometer and Digital Compass
Built-in accelerometer and digital compass improves accuracy by precisely identifying cant and angles.
Finder Series Specifications
Main |
FL25R |
FH25R |
Sensor
|
384×288 - 12μm - NETD, mK≤40
|
640×512 - 12μm - NETD, mK≤40 |
Objective lens, mm
|
25 | 25 |
Magnification, x
|
2.5-10 | 1.5-6.0 |
Detection range, m
|
1298 | 1298 |
Sensor
|
||
Type
|
uncooled
|
uncooled
|
Resolution, pixels
|
384×288
|
640×512 |
Frame rate, Hz
|
50 |
50
|
Optics
|
|
|
Objective lens, mm | 25 | 25 |
Field of View, degrees |
10.5°×7.9° | 17.5°×14° |
Magnification, x
|
2.5-10 | 1.5-6.0 |
Digital Zopm, x | x1/x1.5/x2/x2.5 /x3 /x3.5 x4 | x1/x1.5/x2/x2.5 /x3 /x3.5 x4 |
Display
|
|
|
Resolution, pixels
|
1280x960 LCOS | 1280x960 LCOS |
Thermal Palettes
|
Black, White, Red Hot, Rainbow |
Black, White, Red Hot, Rainbow
|
Range Performance
|
|
|
Detection range (person), m
|
1298 | 1298 |
Video Recorder
|
|
|
Amount of built-in memory, GB
|
16 |
16
|
Laser Rangefinder |
|
|
Laser Rangefinder Range, m |
Max 600 ±1 |
Max 600 ±1
|
Power Supply
|
|
|
Battery type
|
Internal Battery - Li-ion | Internal Battery - Li-ion |
Operating time on battery pack (at t=22°C), h *
|
6
|
6
|
Wi-Fi
|
|
|
Max Line-of-sight reception range m
|
15
|
15
|
Weight & Size
|
|
|
Dimensions, mm
|
70x52x130 | 70x52x130 |
Weight, kg
|
0.32
|
0.32
|
Warranty
|
3 years
|
3 years
|
Trade Data
|
|
|
SKU (Model #)
|
FL25R |
FH25L
|
