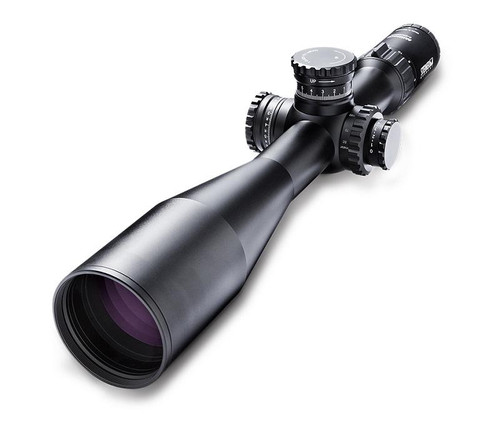

The K525i combines maximum optical performance and precision with unique handling and ergonomics. A rugged riflescope for professionals, with windage optional left or right, precise illuminated reticles in 1 st focal plane and the unique TWIST GUARD windage.
PRODUCT HIGHLIGHTS
- Maximum optical performance – field of view, high contrast image, high definition
- Absolutely reliable repeat accuracy and precise, clearly defined click mechanism
- Optional left or right side windage
- Parallax wheel integrated into the elevation turret (patented) (20 m to ∞)
- Innovative TWIST GUARD windage (patented)
- Precise illuminated reticle in 1 st focal plane
TECHNICAL DATA
| Magnification: | 5 - 25 |
|---|---|
| Objective lens diameter: | 56 mm |
| Eye relief: | 95 mm |
| Field of view: | 7.1 - 1.5 m/100 m |
| Diopter compensation: | +2 / -3.5 dpt |
| Twilight factor (DIN 58388): | 16.7 - 37.4 |
| Impact correction per click: | 0.1 MRAD |
| ¼ MOA | |
| Adjustment range (E/W): | 2.9/1.3 m/100 m |
| Parallax adjustment: | 20 m till ∞ |
| Tube diameter: | 34 mm |
| Length: | 377 mm |
| Weight: | 970 g |
| Illuminated: | Yes |
| Warranty: | 10 years |
